430W 460w High Efficiency Monocrystalline Solar Cells Mono Cell Solar Panel 6 X 20 Cell

Ningbo Linksun Energy Science & Technology Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 430W 460w High Efficiency Monocrystalline Solar Cells Mono Cell Solar Panel 6 X 20 Cell from wholesalers

    Buy cheap 430W 460w High Efficiency Monocrystalline Solar Cells Mono Cell Solar Panel 6 X 20 Cell from wholesalers
    • Buy cheap 430W 460w High Efficiency Monocrystalline Solar Cells Mono Cell Solar Panel 6 X 20 Cell from wholesalers
    • Buy cheap 430W 460w High Efficiency Monocrystalline Solar Cells Mono Cell Solar Panel 6 X 20 Cell from wholesalers
    • Buy cheap 430W 460w High Efficiency Monocrystalline Solar Cells Mono Cell Solar Panel 6 X 20 Cell from wholesalers
    • Buy cheap 430W 460w High Efficiency Monocrystalline Solar Cells Mono Cell Solar Panel 6 X 20 Cell from wholesalers

    430W 460w High Efficiency Monocrystalline Solar Cells Mono Cell Solar Panel 6 X 20 Cell

    Ask Lasest Price
    Brand Name : Linksun
    Model Number : LS-430-460M-120
    Certification : CE
    Payment Terms : 30% TT in advance, 70% balance before delivery.
    Supply Ability : 1000pieces per week
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

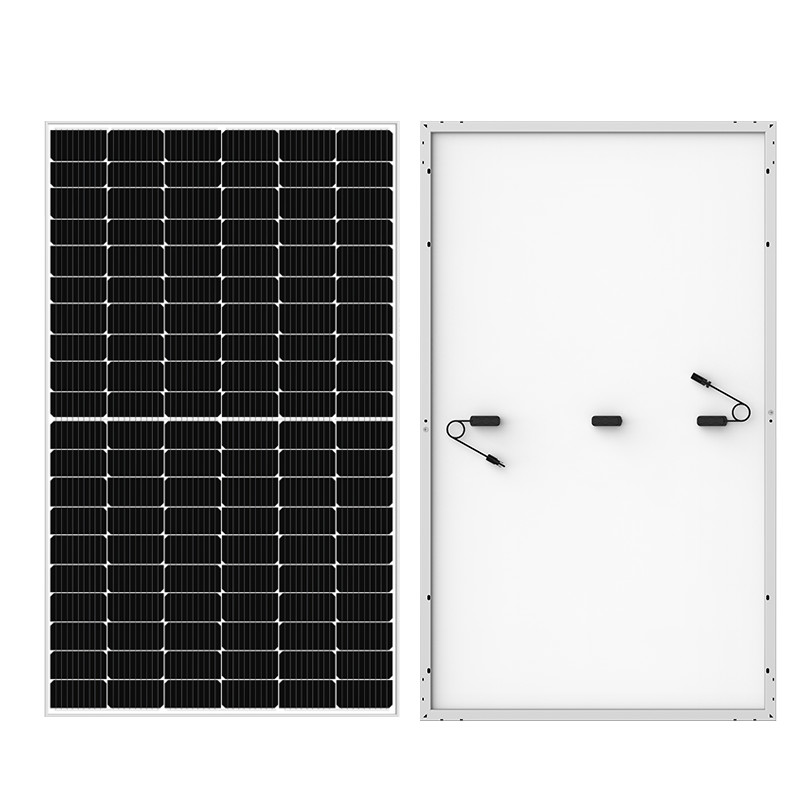

    430W 460w High Efficiency Monocrystalline Solar Cells Mono Cell Solar Panel 6 X 20 Cell

    430W 460w High Efficiency Monocrystalline Solar Cells Mono Cell Solar Panel 6 X 20 Cell


    This high-efficiency monocrystalline solar panel, available in 430W and 460W options.Engineered with advanced technology, it ensures optimal performance and durability, making it ideal for residential, commercial, and industrial applications. Its sleek design and robust construction offer reliable energy solutions, maximizing space and energy efficiency while reducing carbon footprint. Perfect for those seeking sustainable and cost-effective energy alternatives.


    Product Features:

    1) High photoelectric conversion efficiency:
    The photoelectric conversion efficiency of monocrystalline silicon solar cells is about 15%, with the highest reaching 24%, which is currently the highest photoelectric conversion efficiency among all types of solar cells.

    2)Low production cost:
    The production cost of monocrystalline silicon solar cells is relatively low, and the technology is already very mature, so it has been widely used.

    3)Long service life:
    The service life of monocrystalline silicon solar cells is relatively long, generally reaching around 20 years, with the highest reaching 25 years.

    4)Good low light performance:
    Monocrystalline silicon solar cells can also perform well under low light conditions, making them suitable for use in solar lamps, solar lawn lamps, etc.

    5)Strong radiation resistance:
    Monocrystalline silicon solar cells have strong radiation resistance, which can resist radiation such as ultraviolet and infrared rays.



    Product Details:

    ModelLS-430MLS-435MLS-440MLS-445MLS-450MLS-455MLS-460M
    Maximum Power(Pmax)430W435W440W445W450W455W460W
    Maximum Power Voltage(Vmp)33.82V34.07V34.32V34.56V34.81V35.06V35.31V
    Maximum Power Current(Imp)12.71A12.77A12.83A12.88A12.93A12.98A13.03A
    Open-Circuit Voltage(Voc)40.5V40.80V41.10V41.30V41.50V41.70V41.90V
    Short-Circuit Current(Isc)13.5A13.55A13.60A13.65A13.70A13.75A13.80A
    Power Tolerance(Positive)

    0-+3%


    Module Efficiency STC19.85%20.08%20.31%20.55%20.78%21.01%21.24%
    Operating Temperature Range-40°C - 85°C
    Maximum System VoltageDC 1500V
    Cell TypeMono-crystalline PERC,182x91mm
    Cell number120(6x20)(Half-Cell)
    Product Dimension(mm)1910*1134*35mm(75.20x44.65x1.38 inches)
    Weight(kgs)23.5kg
    Front Glass3.2mm High Transmission Tempered Glass(0.13 inches)
    Frame TypeSilver/Black,Anodized Aluminum Alloy
    Protection ClassIP68 rated
    Connector TypeMC4
    Output Cables4.0 mm²(0.006 inches²),Length:1100mm
    Temperature CharacteristicsPacking Configuration
    Temp.Coeff.of Isc(TK Isc)0.05%/℃Container40’HQ
    Temp.Coeff.of Voc(TK Voc)-0.29%/℃Pieces per pallet62
    Temp.Coeff.of Pmax(TK Pmax)-0.34%/℃Pallets per container12
    Normal operating cell Temperature44±2℃Pieces per container744


    430W 460w High Efficiency Monocrystalline Solar Cells Mono Cell Solar Panel 6 X 20 Cell
    430W 460w High Efficiency Monocrystalline Solar Cells Mono Cell Solar Panel 6 X 20 Cell
    FAQ:


    Q1:What's the solar panels warranty?
    A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.

    Q2:Do you accept OEM/ODM orders?
    A:We accept OEM/ODM orders.Welcome your inquiry.

    Q3:Can I have samples to test?and what's the lead time for the sample order?
    A:Yes,of course.The lead time for samples is 7-10 days.

    Q4:Are you manufacturer or a trading company?
    A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.

    Q5:Where are your goods exported?
    A:We can export to all over the world.
